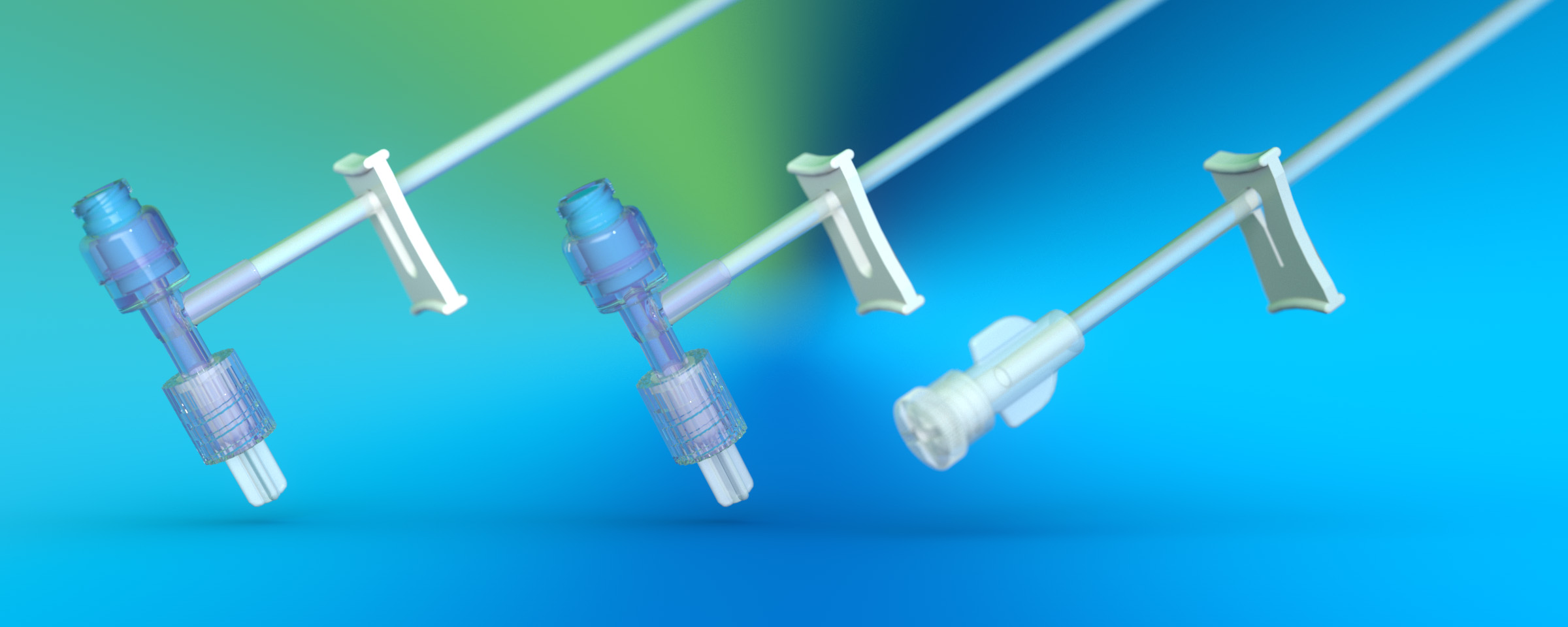

IV Extension Sets
Request Samples »

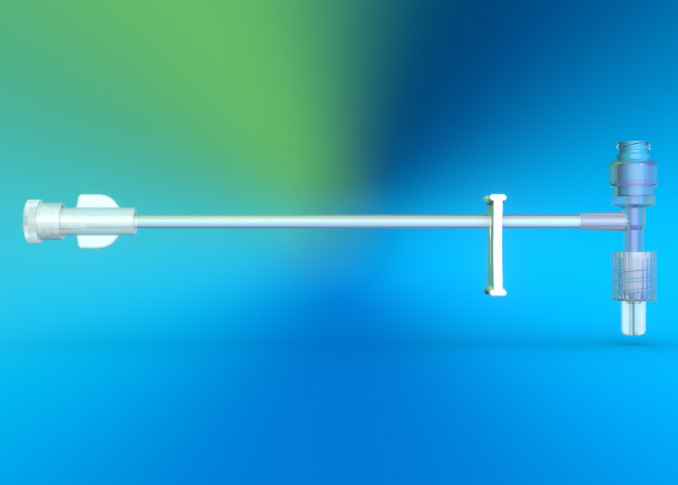

Q2® Dual Port
T-Extension Sets
Our extension sets focus on safe and accurate infusion therapy delivery with minimal priming volumes and high flow rates. Our offerings include various tubing sizes and component options to ensure your patients are kept safe.
Securement Bands
Our securement bands provide a better solution for securing and organizing equipment in many hospital environments. They are made from a soft, non-slip material to snuggly hold smooth surfaces such as an IV pole or bedrail, and unlike tape, can be quickly removed without leaving behind a sticky residue.

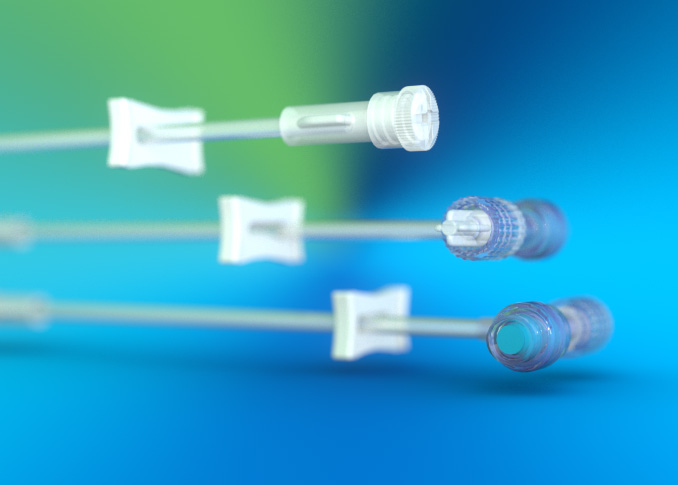

Dual Port Extension Sets
With Q2® Split-Septum Technology
The Q2® dual port extension set technology contains a pressure rated short port and a convenient side port, providing virtually zero residual volume and high flow rates.
- Female luer:
- Universally compatible
- Not pressure rated (use Q2® Port)
- Q2® port:
- Pressure rated infusion port (325 psi)
- Straight fluid path
Accurate Infusion Therapy Delivery

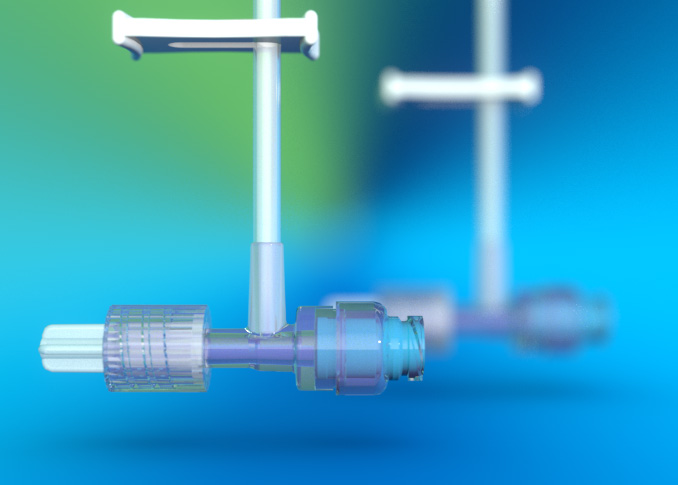

Features & Benefits
- Compatibility: T-shaped device with two infusion ports. Standard female luers accept any needlefree connector
- Fluid path/priming volume: split septum with straight fluid path. Approximately 0.3 mL1
- Q2® displacement: the Q2® port has an average displacement of 0.028 mL1
- Flow rates1: gravity flow rate at 27" height (1 psi)
- Q2® port:
- 1 psi: 232 mL/min
- 3 psi: 495 mL/min
- 5 psi: 659 mL/min
- Microbore tubing:
- 1 psi: 63 mL/min
- 3 psi: 121 mL/min
- 5 psi: 168 mL/min
- Materials: MRI safe, device not made with the plasticizer Diethylhexyl Phthalate (DEHP)
- Pressure rating: may be used with low pressure power injectors rated up to 325 psi1
- Visibility: clear visibility promotes complete and adequate flush
- Activations: replace Q2® port after 100 activations
Customizable IV Extension Sets
Experience the Difference
Our Q2® dual port T-extension sets are available in customizable lengths, lumens and configurations with kink-resistant tubing, pressure limits, and secure connections. Reach out to our team today to schedule a demo.
Applications of our Dual-Port Extension Sets
Our IV extension sets are ideal for infusion therapy applications related to cardiac surgery, anesthesia, and critical care.
Lyka® PORT Needlefree Access Device for Hemodialysis
Uniquely designed for use in hemodialysis, the Lyka® PORT2 brings engineering excellence to patient care, safety, and performance. The Lyka® PORT needlefree access device utilizes split septum technology with low dead space, and is fully flushable to reduce infection risk. The CDC recommends split septum valves over mechanical valves in needleless systems to reduce infection risk. The Lyka® PORT features an open fluid path, delivering ultra-high flow rates and enhanced safety for hemodialysis patients3.
References
1 Data on file
2 Lyka® PORT is FDA 510(k) cleared for use with vascular access devices in hemodialysis or as an accessory to an I.V. set for the administration or withdraw of fluids to a patient through a cannula or needle placed in the vein or artery. The device may be used for patient populations including very low birth-weight infants, infants, children, and adults for up to 7 days
3 O-Grady, Naomi, et al. “Guidelines for the Prevention of Intravascular Catheter-Related Infections, 2011.” U.S. Centers for Disease Control and Prevention, 2011, pp. 19
For complete indications, contraindications, warnings, precautions, and potential adverse events, refer to the product's Instructions for Use (IFU).
